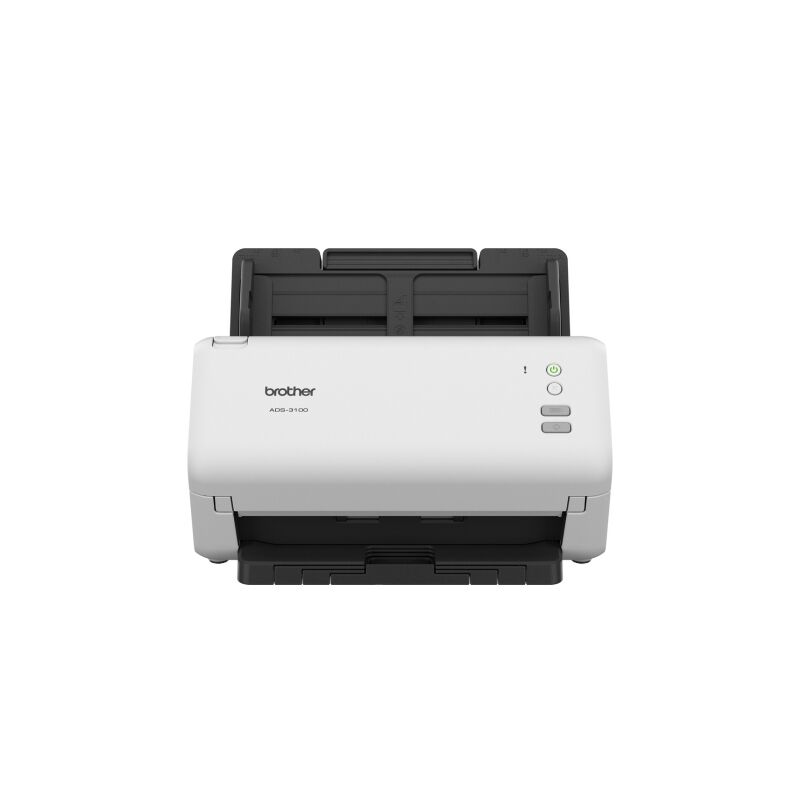

Brother ADS-3100 Scanner
$539.00
The ADS-3100 desktop document scanner combines high-functionality with a simple, intuitive design in a compact, low-cost footprint.
General |
|
| Product Form Factor | Sheet Fed Desktop Document Scanner |
| Scanner Type | Dual CIS (Contact Image Sensor) |
| Control Panel | LED, 4 Keys |
| Backup Clock | Up to 24 hours |
| Local Interface | SuperSpeed USB 3.0, USB 2.0 Host (Rear) |
Scan |
|
| Scan Speeds (A4) (Colour & Mono) | Up to 40 ppm |
| Scan Speeds 2-Sided (duplex) (A4) | Up to 80 ipm |
| Optical Scan Resolution | Up to 600 x 600dpi |
| Interpolated Scan Resolution | Up to 1,200 x 1,200dpi |
| Wake-up Time | USB connected, approx 1 sec from sleep mode |
| Colour Depth | 48-bit internal, 24-bit external |
| Grey Scale | 256 levels (8 bit) |
Scanner Functions |
|
| Image Processing | Auto Deskew(Feed)7, Detect End of Page5, Margin Setting5, Auto Image Rotation5, Edge Fill5, Tear Fill5, Punch Hole Removal5, Auto Colour Detect Adjust, Blank Page Removal, Diffusion Adjustment - Grey, Colour Tone Adjustment |
| File Format Support | Including PDF (single, multi, PDF/A-1b, secured, signed), JPEG, TIFF (single, multi) |
| Standard Functions | Scan to PC, Image3, Plastic Card Mode, Single Page Scan5, Continuous Scan⁵, Multi Feed Detection, Half Speed Mode, Barcode Detection5, JPEG Compression⁵, Digital Imprinter⁵, Custom TWAIN Profiles |
| Direct Scan | Scan directly to a USB flash memory storage |
Media Handling |
|
| Automatic Document Feeder (ADF) | 60 Sheets |
| Media Sizes |
Width: 50.8 - 215.9mm, Height: 50.8 - 355.6mm, Long Paper: 5,000mm |
| Plastic Card | Length (ISO): 85.60mm, Width (ISO): 53.98mm |
| Media Types | Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card |
| Media |
Paper Weight: 40 - 200gsm, Paper Thickness: 0.08 - 0.28mm Plastic Card Thickness: Up to 1.32mm embossed, up to 1.10mm without emboss |
Dimensions and Weight |
|
| Scanner With Carton (WxDxH) | 391 x 243 x 320 mm - 3.31kg |
| Scanner Without Carton (WxDxH) | 299 x 215 x 190 mm - 2.6kg |
