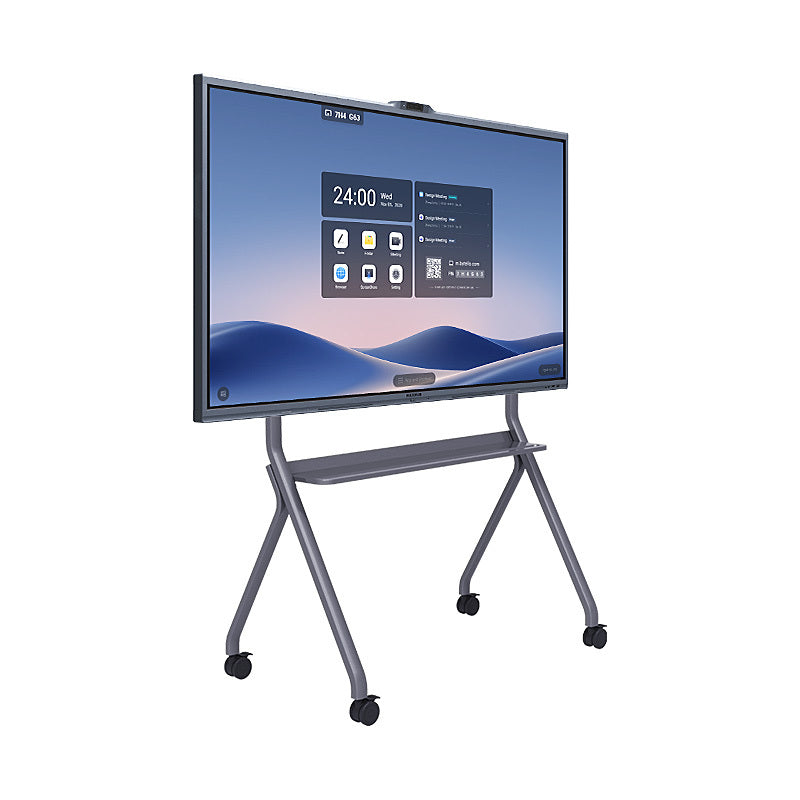

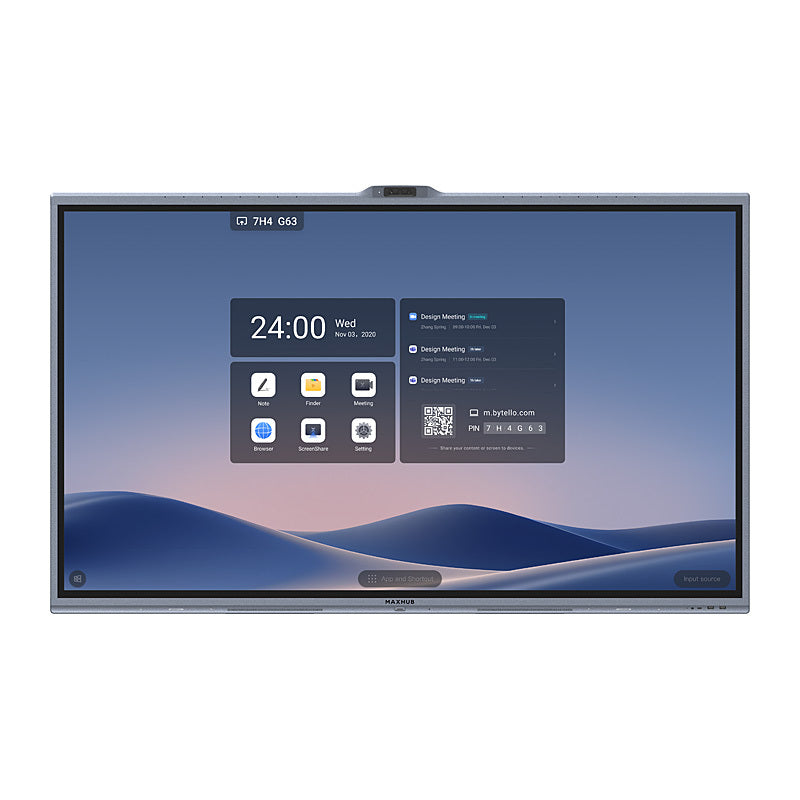

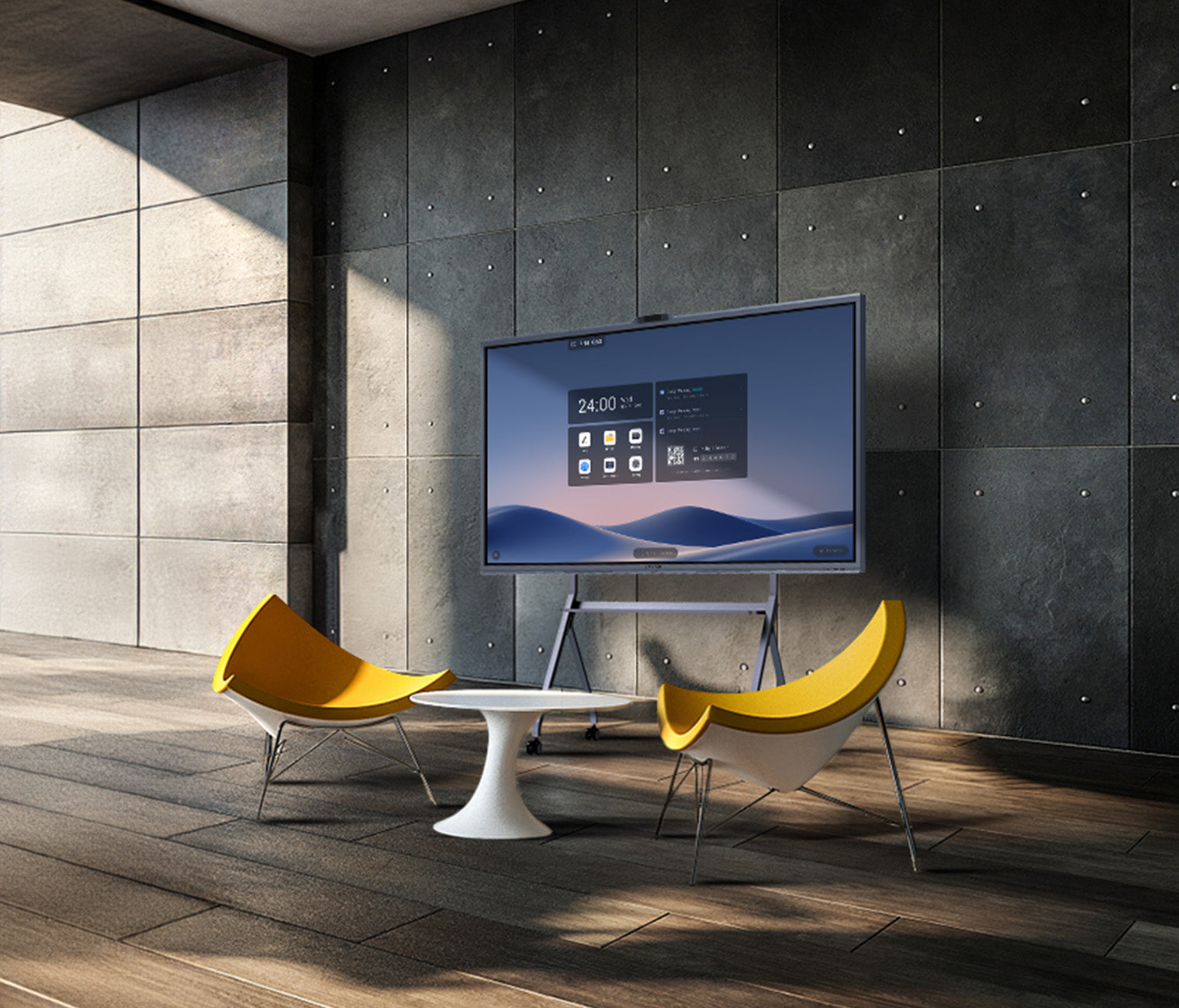

MAXHUB XBoard V7 Series 55''
$7,500.00
Ultra Advanced IR Technology, narrow bezel design, AI powered triple 50M camera with auto framing and speaker tracking, Anti-glare glass,16 mic array, Stereo speakers, Intelligent touchscreen technology, Palm rejection. OS Purchased seperately
Basic Features
- Display Type: 4K Ultra HD Flat Panel UHD Display
- Screen Size: 55 inches diagonal
- Resolution: 4K Ultra HD resolution for exceptional clarity
- Technology: Cutting-edge technology for vibrant colors and detailed visuals
- Interactive Capabilities: Intuitive touch interface for interactive use
- Versatility: Supports both portrait and landscape orientations
- Connectivity: Comprehensive connectivity options for seamless integration

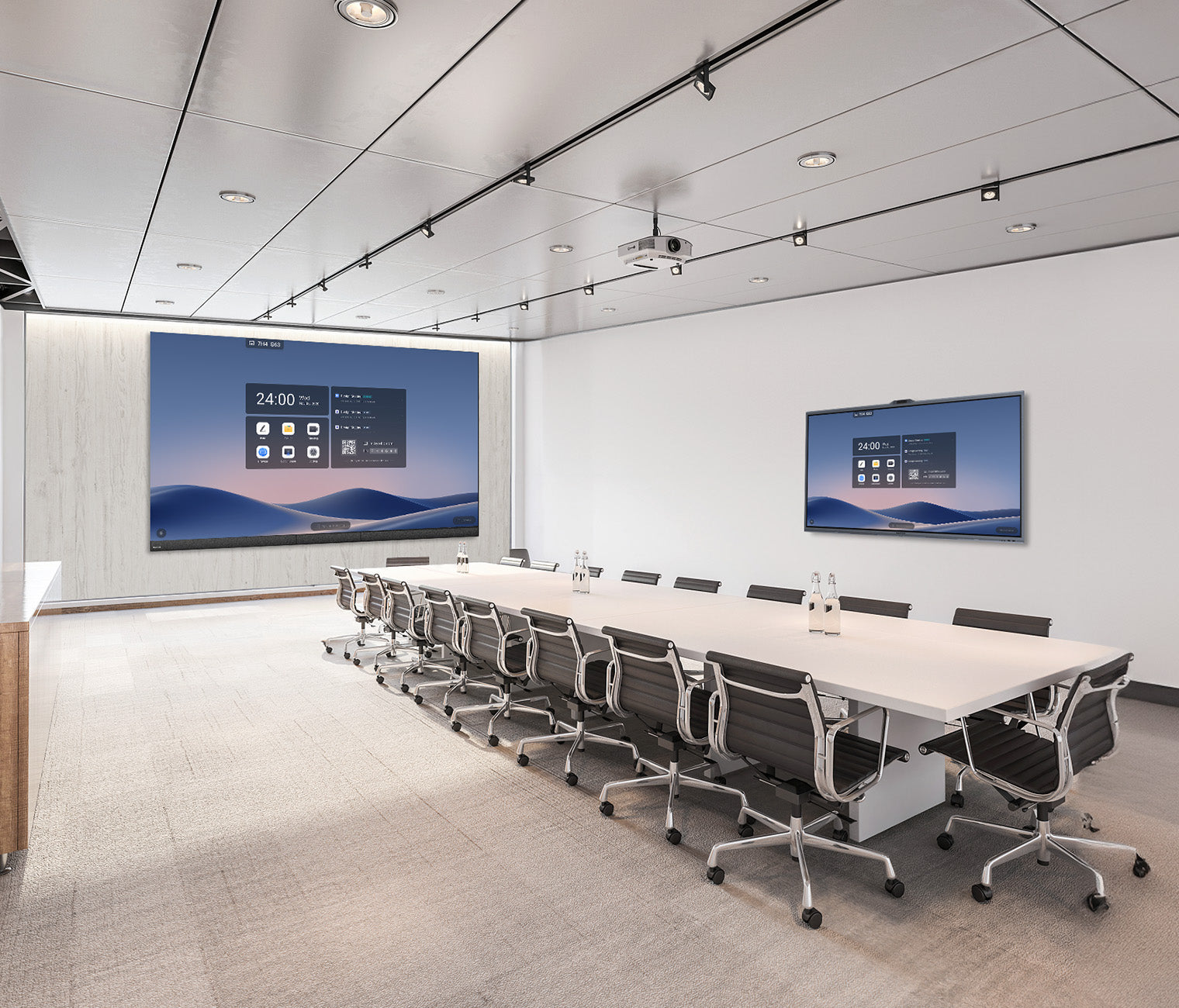

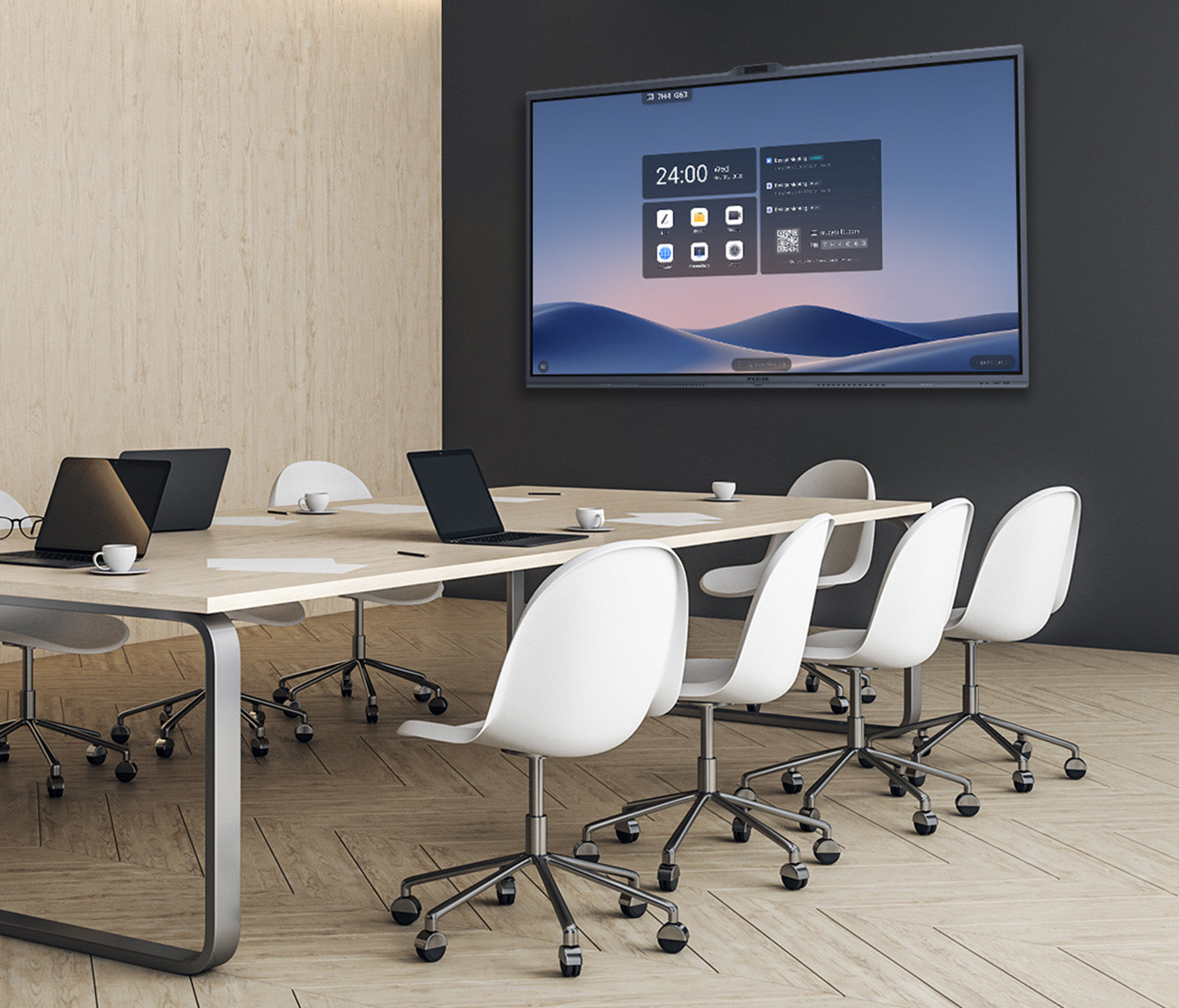

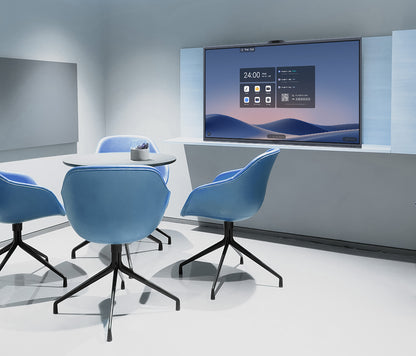

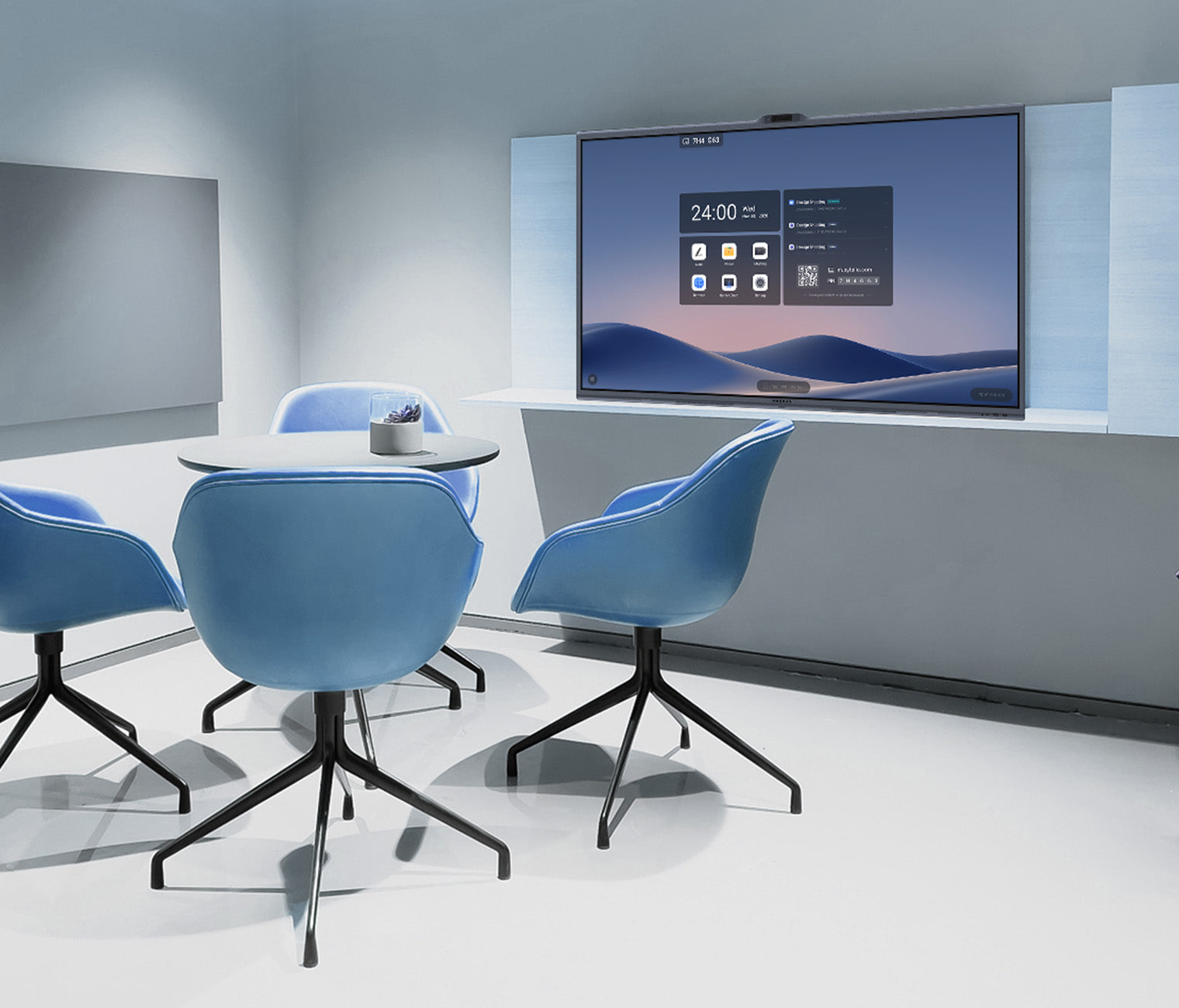

- Application: Ideal for classrooms, boardrooms, and digital signage
- Design: Sleek design that integrates well into various environments
- Usability: Designed for reliability and ease of use
Display |
| Screen Size (Inch) | 55 |
| Aspect Ratio | 16:9 |
| Panel | ADS |
| Backlight | DLED |
| Brightness (Typ.) | 350 nits |
| Glass | Zero parallax 3mm thickness 9H tempered |
| Surface Technology | 25% haze Non-glare technology |
| Resolution | 3840 × 2160 |
| Refresh Rate | 60 Hz |
| Contrast Ratio | 1200:1 (typ.) |
| Viewing Angle (H × V) | 178° / 178° |
| Color Gamut | 90% NTSC |
| Display Orientation | Landscape |
| Response Time | 8 ms |
| Life Time | ＞50,000 hours |
| Operation Hours (Hours / Day) | 16 / 7 |
| Display Color | 1.07B (10 bit) |
| Color Accuracy | Delta E ≤ 1.5 |
| Sensor | Ambient light sensor Ultrasonic detection sensor |
Touch System |
| Touch Technology |
Intelligent Touchscreen Technology (infrared recognition) |
| Touch Point |
50 points touch |
| Object Recognition Range | ≥1.5 mm |
| Accuracy | ±0.5 mm |
| Response Time | ≤2.5 ms |
| Writing Height | ≤1 mm |
| System (Touch Return) |
Windows11/Windows10/Windows8/ Windows7/Android/ Linux/Mac OS X/Chrome OS |
| Feature |
Windows Ink / Direct Annotation / Palm Rejection / Sharp Erase / Multi-input Recognition / Handwriting Recognition |

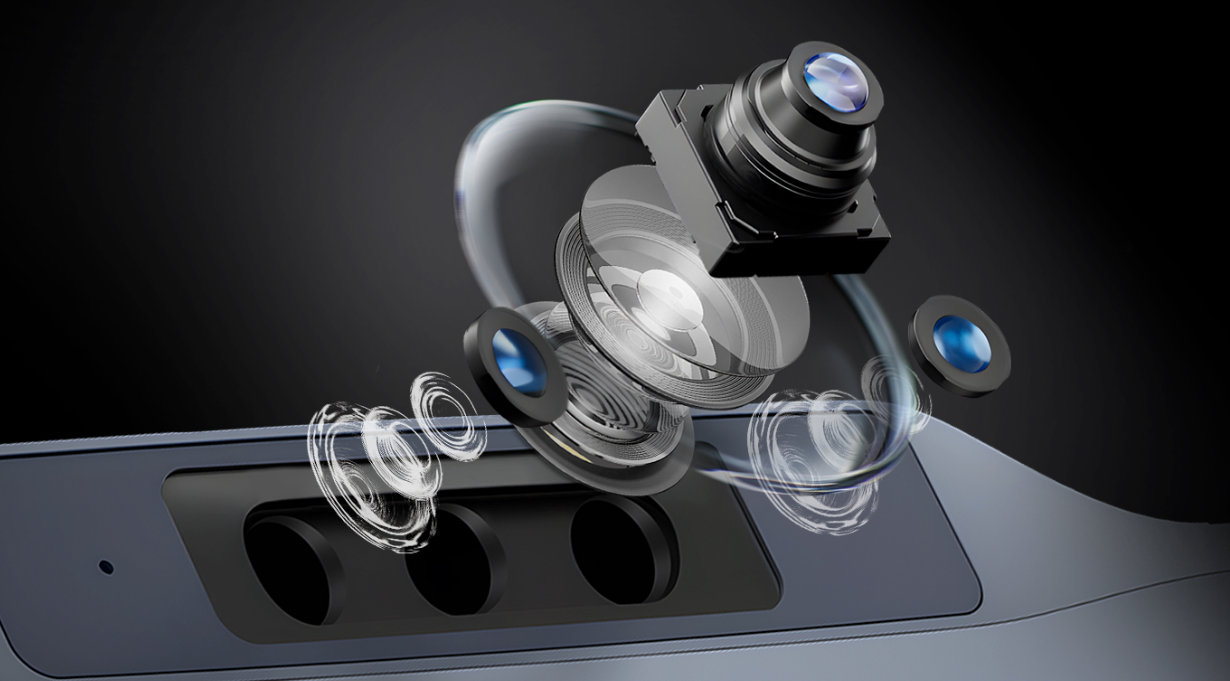

Camera |
| Quantity | 3 |
| Resolution |
50 MP + 50 MP + 50 MP (Panorama + Telephoto + Telephoto) |
| Zoom |
2x optical zoom 5x digital zoom |
| Field of View |
99° (Diagonal) 86° (Horizontal) 69° (Vertical) |
| Position | Built-in ejection |
| Feature |
Personalized presets, Auto framing, Speaker tracking Multiple-speaker tracking, Intelligent focus |
Audio |
|
| Sound Channel | 2.1 |
| Speaker Power | 2×10W+20W |
Microphone |
| Quantity | 16-mic array |
| Pick-up Angle | 180° |
| Pick-up Range | 0~15m |
| Feature | Intelligent audio fence AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control) |
Feature |
|
| System OS | MAXHUB OS 7.0 powered by Windows |
| Screen Share | MAXHUB Share Support BYOM / Miracast / Airplay / Chromecast / P2P |
| Device Management | MAXHUB Pivot |
| Protocol Control | RS232 / IP control Supports integration with Crestron / Extron / Q-sys |
| Special Features | Microsoft Intune |
Certification |
| Safety | IEC 62368-1 |
| EMC | Class B |
| Environment | Energy Star |
| IP Rating | IP5X design standards |
